How to Develop and Deploy Smart Contracts with Foundry & Openzeppelin

Foundry is a blazing fast, portable and modular toolkit for Ethereum application development written in Rust. It consists of three components:

1. Forge: Ethereum testing framework (like Truffle, Hardhat, and DappTools).
2. Cast: CLI for interacting with EVM smart contracts, sending transactions, and getting chain data.
3. Anvil: local Ethereum node, similar to Ganache or Hardhat Network.

Why Should We Use Foundry?

• It’s speedy; no more wasted time while running tests.
• It allows you to write tests in Solidity, which minimizes context switching.
• Many testing features like fuzzing, console.log, and cheat codes give you more power and flexibility.

Topics We Are Going to Cover in This Article

1. Project setup
2. How to install dependencies in Foundry (i.e., OpenZeppelin)
3. Integrating Foundry with VSCode
4. Writing the contract and test cases using Foundry
5. Understanding traces in Foundry
6. Generating gas report using Foundry
7. Deploying the contract using Foundry

Installation

The Foundry Book explains the installation of Foundry very well. Check out the instructions here:

https://book.getfoundry.sh/getting-started/installation

Setting Up the Project

Once we installed Foundry, we can create a new project using the following command:

forge init foundry-demo // forge-demo is the name of the project

After creating the project, we check if everything is working correctly with this command:

cd foundry-demo && forge build

Installing Dependencies

Forge manages dependencies using Git Submodules by default, which means that it works with any GitHub repository that contains smart contracts.

To use OpenZeppelin, we need to install it as a dependency in our project with this command:

forge install OpenZeppelin/openzeppelin-contracts
// forge install is command which is used for installing  dependencies
// <https://github.com/OpenZeppelin/openzeppelin-contracts>
// use {{username}}/{{repo_name}} from the github url

Integrate Foundry with VSCode

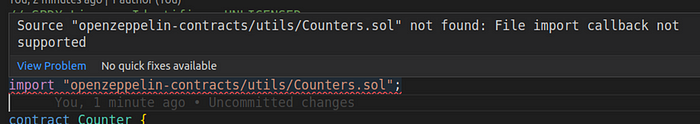

After installing OpenZeppelin, try importing something from it in the contract (your contract is in the src directory); an error will pop up if you are using VSCode.

To fix this error, Run this command:

forge remappings > remappings.txt

What this command does is creates a remappings.txt file inside the root directory of the project.

At this moment, the content in the file might look like this:

ds-test/=lib/forge-std/lib/ds-test/src/
forge-std/=lib/forge-std/src/
openzeppelin-contracts/=lib/openzeppelin-contracts/contracts/

For more details, visit this website: https://book.getfoundry.sh/config/vscode

Implementing the Contract

Rename the file src/Counter.sol to src/FDemo.sol; the code for our ERC721 smart contract is as below:

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.13;

import "openzeppelin-contracts/token/ERC721/extensions/ERC721URIStorage.sol";
import "openzeppelin-contracts/utils/Counters.sol";

contract FDemo is ERC721URIStorage {
    using Counters for Counters.Counter;
    Counters.Counter private _tokenId;

    constructor() ERC721("FDemo", "FD") {}

    function mint(string memory tokenUri) external returns (uint256) {
        uint256 newTokenId = _tokenId.current();

        _mint(msg.sender, newTokenId);
        _setTokenURI(newTokenId, tokenUri);

        _tokenId.increment();

        return newTokenId;
    }
}

Testing the Contract with Foundry

Let's start by renaming the test file to match the name of our contract Counter.t.sol to FDemo.t.sol.

Forge uses the following keywords in tests:

• setUp: An optional function invoked before each test case runs.

function setUp() public {
    testNumber = 42;
}

• test: Functions prefixed with test are run as a test case.

function testNumberIs42() public {
  assertEq(testNumber, 42);
}

• testFail: The inverse of the test prefix—if the function does not revert, the test fails.

function testNumberIs42() public {
  assertEq(testNumber, 42);
}

We only have one method, mint, so we will write a test case for this method. This is going to be a pretty simple one.

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.13;

import "forge-std/Test.sol";
import "../src/FDemo.sol";

contract FoundryDemoTest is Test {
    FDemo instance;

    function setUp() public {
        instance = new FDemo();
    }

    function testMint() public {
        string memory dummyTokenUri = "ipfs://metadata_url";
        uint256 tokenId = instance.mint(dummyTokenUri);

        assertEq(dummyTokenUri, instance.tokenURI(tokenId));
    }

}

Now, to run this test, we can use the command forge test

We can use traces if we want to explore more details/events/flow about the test cases. To enable them while running test cases use -vvv or -vvvv

The attached screenshot shows the result of test cases with and without traces.

More details on the Traces: https://book.getfoundry.sh/forge/traces

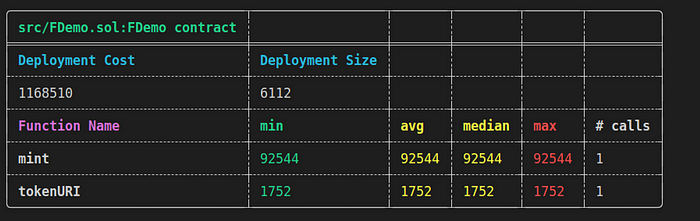

Generating Gas Report Using Foundry

To generate gas reports, use `--gas-report`` with the test command.

forge test --gas-report

More details on the gas report here: https://book.getfoundry.sh/forge/gas-reports

Deploying and Verifying Contracts with Foundry

Forge can deploy smart contracts to a given network with the forge create command.

Some options we can use with forge create while deploying the contract.

• --rpc-url: RPC URL of the network on which we want to deploy our contract. In our case, we will be using the RPC URL of Polygon's Mumbai testnet.
• --constructor-args: Pass arguments to the constructor.
• --private-key: Private key of deployers wallet.

We can optionally pass --verify and --etherscan-api-key if we want to verify our contract.

$ forge create --rpc-url <your_rpc_url> \\
    --constructor-args "ForgeUSD" "FUSD" 18 1000000000000000000000 \\
    --private-key <your_private_key> src/MyToken.sol:MyToken \\
    --etherscan-api-key <your_etherscan_api_key> \\
    --verify

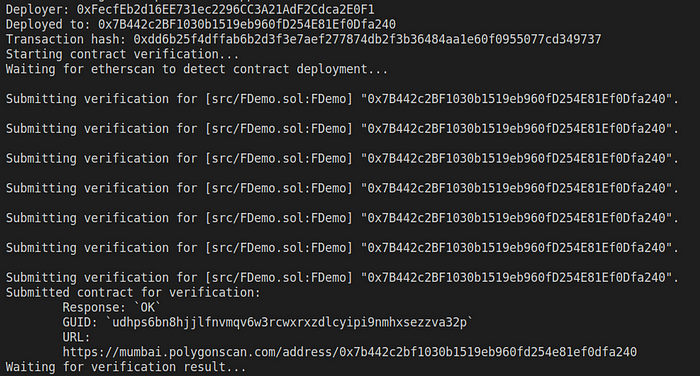

Let's deploy, now!

forge create --rpc-url <https://rpc.ankr.com/polygon_mumbai>
--private-key <your_private_key>  src/FDemo.sol:FDemo
--etherscan-api-key <your_etherscan_api_key>
--verify

Complete code: GitHub
